Understanding the Nuances of UL 3741: Rapid Shutdown Requirements for Rooftop Solar

Solar developers continue to search for ways to reduce system installation costs while maintaining a safe and reliable asset. They have begun to look to UL 3741 PV Hazard Control as a means of meeting the National Electrical Code (NEC) rapid shutdown requirement inside the PV array area. Here's what you need to know.

The landscape of commercial solar installations has dramatically changed from just a few short years ago, and so have the safety regulations. As important as it is to be aware of rapid shutdown requirements, understanding how UL 3741 PV Hazard Control fits into those standards is crucial for compliance, operating safety, and a fully optimized system. Its nuances are often overlooked, causing additional costs to remedy non-compliant installations.

This article looks at the nuances that differentiate NEC 690 rapid shutdown requirements and UL 3741 regulations, how UL 3741 simplifies compliance, and the practical challenges and design considerations when implementing UL 3741 in commercial solar installations.

Key Takeaways:
•    UL 3741-compliant systems can offer a more cost-effective alternative
•    Designing for UL 3741 compliance requires precise placement of inverters within the array boundaries, minimizing DC conductor runs but increasing AC conductor runs.
•    Quality control and equipment verification are crucial to avoid non-compliance, especially when dealing with complex designs.

What is Rapid Shutdown in Solar Installations?

The NEC plays a central role in setting safety guidelines for photovoltaic systems. Rapid shutdown was introduced in the 2014 NEC and refers to a feature that is intended to protect first responders, notably firefighters, from exposure to dangerous voltages during an emergency. Specifically, NEC 690.12, the so-called "Rapid Shutdown" rule, requires that solar systems have the capability to reduce voltage on DC conductors for a prescribed distance from the array and from the array to the inverter to safe levels within 30 seconds of activation of the shutdown.

The original NEC specified that PV systems had to reduce voltage to 30 volts or lower within 10 feet of the array and within 30 seconds of the activation of a rapid shutdown mechanism. Later versions of the NEC reduced the controlled boundary to 1 foot and implemented a requirement for the conductors within the array boundary. This has created some challenges for installers, particularly on larger commercial projects, as installations now need Module Level Power Electronics (MLPE) and complex wiring to achieve compliance.

Therefore, MLPE solutions such as module-level rapid shutdown disconnects, microinverters, and DC optimizers became the industry's immediate answer to the rapid shutdown requirements, as they isolate individual panels and quickly de-energize in case of an emergency. These, however, introduced additional costs and complexity.

Understanding UL 3741

UL 3741 was developed in response to an evolving landscape of NEC 690 rapid shutdown requirements. The UL standard creates a more holistic system-level approach to compliance with NEC 690.12. While the NEC provides very detailed safety criteria, such as voltage reduction within certain distances of the array, UL 3741 provides a framework for fully certifying PV systems, including modules with inverters, wiring, and racking as an assembly. However, it is important to note that UL 3741 only applies to the part of the PV system inside the array boundary as defined in 690.12. Circuits outside the array boundary must comply with other provisions of 690.12.

UL 3741's objective is to avoid the complications and expenses associated with complying with the NEC rapid shutdown requirements without resorting to an excessive number of MLPE devices, which are effective but contribute to cost, complexity, and potential failure modes within the solar systems. With UL 3741, manufacturers can certify their systems as "safe" by demonstrating that the complete PV array assembly, including wiring and component placement, protects first responders. Another aspect of UL 3741, in addition to not requiring MLPE, is that it can be designed to provide passive safety. Most UL 3741 systems do not require activation to be rendered safe—there is no button to press or shutdown required. They are always considered safe for firefighters.

Because the UL 3741 standard evaluates the entire system, PV arrays can meet the code's rapid shutdown requirements without having MLPE at each module. This is especially beneficial for large commercial installations, where the added cost and complexity of using MLPE across numerous modules could be prohibitive.

How UL 3741 Differs from Other Standards

Before UL 3741 was developed, solar installations were mostly based on the NEC 690 for guidelines on how to safely wire and ground PV systems. NEC 690 includes all of the major electrical safety requirements, like rapid shutdown, but does not prescribe specific technologies or methods for compliance. Instead, it defines performance criteria that the systems should meet for safety. Among the most widespread solutions were those allowing panel-level control and fast de-energizing, like MLPE devices. While useful in residential installations, it tended to become complicated and costly for bigger commercial installations.

UL 3741 diverges from the component-based approach of NEC 690 by allowing the entire system to be certified for compliance with 690.12. Instead of treating each module as a separate entity that must comply individually, UL 3741 focuses on the interaction of components, such as modules, wiring, and inverters. Aiming at the overall performance of the array rather than its individual components, UL 3741 offers a streamlined approach that achieves the safety outcomes required by NEC 690.12 but with fewer components and, in many cases, lower costs.

Practical Considerations for PV System Design

With UL 3741, commercial solar installations have become a design process that can achieve a balance of safety, performance, and cost-effectiveness, aligned with NEC 690. While UL 3741 offers better flexibility with a system-wide approach, there are more design considerations to ensure the system is safe and efficient.

Installers can no longer think of it as a component-by-component approval, as commercial solar requires thinking about the whole PV system, from modules all the way to wire management, as one that must work in harmony to achieve the rapid shutdown requirements of the NEC. A holistic approach requires deep knowledge of system design, equipment compatibility, and on-site execution.

Design Strategy for UL 3741

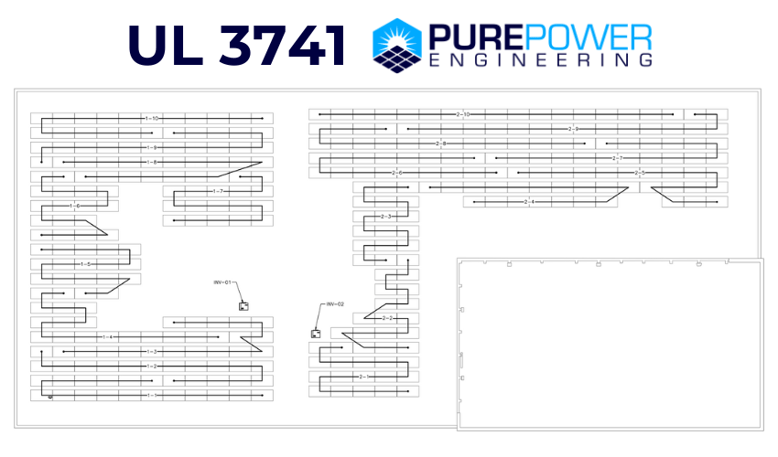

Notable for the design strategy is that the installation of a UL 3741 listed system has to strictly follow the manufacturer’s installation instructions. With that in mind, the co-location of the inverter with the array hosting the respective strings is one of the most important areas of consideration for compliance with UL 3741. To achieve compliance, inverter DC terminals need to be installed no more than 12 inches from the associated array. No DC conductors can extend beyond this 12-inch boundary.

Ideally, the design will allocate inverters on the northern side of the array to achieve the best performance (avoid shading). Also, the components for the installation need to be well-chosen: Only use those components approved on the racking vendor's UL 3741 list to make sure that every aspect of the system maintains compliance down to the little details.

Challenges for Compliant System Design

While UL 3741 allows for NEC 690.12 compliance without MLPE, it introduces certain design challenges that need to be carefully managed:

1. Inverter Placement and Array Size: The requirement to co-locate inverters within the array limits design flexibility. For larger installations, this can mean that either bigger arrays or smaller inverters must be used to stay within compliance. In scenarios where rooftop space is limited or where there are obstructions like skylights, the maximum 24-inch gap between arrays may restrict design options. This often requires creative solutions to maintain compliance without compromising the installation’s overall efficiency.

2. Voltage Drop and Cable Sizing: Since inverters have to be distributed across the array, AC voltage drop can be an issue on account of the length of output feeders. Sometimes, installers will have to upsize the inverter output feeders to mitigate voltage drop. Yet, doing so may not always be easy as some inverters may not accept large enough feeders to accommodate the voltage drop. This will require more expensive copper conductors or cable splicing, with the latter introducing additional points of failure.

3. On-Site Quality Control: Not all installers are entirely familiar with UL 3741 requirements. This can lead to mistakes during installation. For example, an installer may inadvertently route DC raceways outside the 12-inch array boundary, thinking it’s the shortest and most efficient route back to the inverter. Such practice would violate UL 3741’s strict guidelines which require all DC raceways to remain within the defined array boundaries. Regular on-site inspections and quality control measures are essential to avoid costly rework and ensure full compliance.

4. Equipment Listings and Certification: Finally, UL 3741 compliance for the racking vendor's equipment listings is of great importance. For racking manufacturers to achieve UL 3741 certification, they must co-list their products with each individual inverter model. Before proceeding with a UL 3741 design, project owners should check the racking vendor’s approved list of inverters to ensure compatibility and avoid design issues later in the project.

UL 3741 is expected to influence more solar projects as industry stakeholders seek optimized, scalable solutions for rapid shutdown compliance. Embracing UL 3741 today meets current safety demands and positions developers to adapt efficiently to future regulatory changes and market innovations.
