Messenger Wire Systems for Ground-Mount Solar —How to Get Them Right

Messenger wire systems have become the preferred choice for wire management in large-scale ground-mount solar projects. They provide the advantages of lower installation costs, easier maintenance access, and less trenching compared to traditional conduit-based or direct-buried designs. But just because they’re widely used doesn’t mean they’re widely understood. Many of the most common (and costly) project hiccups happen due to design missteps, engineering oversights, or unclear construction details. Here's a look at the top challenges EPCs face when implementing messenger wire systems, along with guidance on how to address them effectively.

How Messenger Wire Systems Work

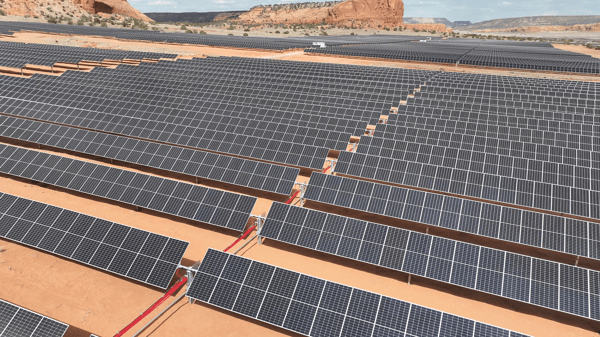

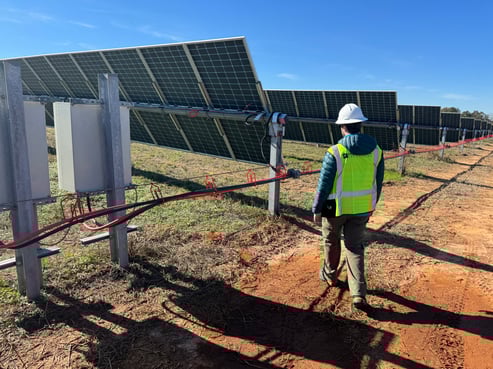

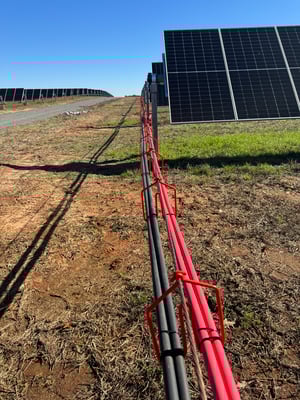

Think of a messenger wire system like a cable clothesline, except instead of socks, it holds the electrical lifelines of a solar plant. Tensioned steel cables (the “messenger”) are strung between structural posts. Along this span, hangers are clipped onto the messenger wire at regular intervals.

The spacing of the hangers depends on the number, weight, and layout of the cables. As cables are added or removed during installation, the system's sag adjusts dynamically based on the total load.

Why Use Messenger Wire Systems in Solar Projects?

Messenger wire systems are increasingly favored on utility and large commercial ground-mount projects because they:

Speed Up Installation - Cables are laid into hangers rather than pulled through conduit or trenches, saving labor, time, and site disruption.

Improve Thermal Performance - With air circulation around the cables, systems run cooler, allowing for smaller wire sizes and increased ampacity (capacity to carry current) compared to buried cables.

Simplify O&M - Repairs and inspections are easier when everything is visible and accessible, with no digging required to troubleshoot a failed run.

Reduce Conduit and Grounding Costs - One messenger span can replace multiple underground runs and may require only a single grounding path.

Coordination Misfires Between Structural, Electrical & Racking

A successful messenger wire system design requires seamless coordination between electrical engineering, structural design, and the racking manufacturer. This rarely happens by accident.

The typical workflow:

•    The electrical team calculates conductor types and quantities, referencing NEC ampacity tables and manufacturer datasheets to determine wire weight.
•    These values must be passed to the structural team, which calculates tension, sag, and anchoring loads for the messenger wire.
•    The racking team must confirm that their posts can support the messenger loads, or recommend separate posts as an alternative.

What Are Ampacity Tables?

Ampacity tables are part of the National Electrical Code (NEC) and indicate the maximum amount of electrical current (in amps) that a conductor (wire) can safely carry without overheating under specific conditions. Key factors that affect ampacity:

•    Wire type and size
•    Insulation material
•    Ambient temperature
•    Whether the wire is in free air, conduit, or part of a messenger system
•    How many conductors are bundled together

Wrong NEC Table = Wrong Messenger Wire Sizing

Ampacity tables in the NEC are specific to applications. For messenger wire systems, the table meant for messenger installations must be used, not the one for free-air or conduit. This is one of the most common misunderstandings in the field. Some engineers:

•    Use the free-air table, which assumes cables are isolated (they're not in bundled wire runs).
•    Skip derating for bundling, even when running dozens of conductors together.
•    Ignore termination ampacity checks, which can differ from mid-run temperatures.

The result? Undersized conductors that result in premature conductor failure, failure of over current protection, failed inspections, and reduced performance.

Transition Points: Where Solar Projects Fall Apart

Most messenger wire system issues don’t happen mid-span; they happen at the intersections of:

•    An underground conduit and the messenger system
•    East-West messenger runs and North-South runs

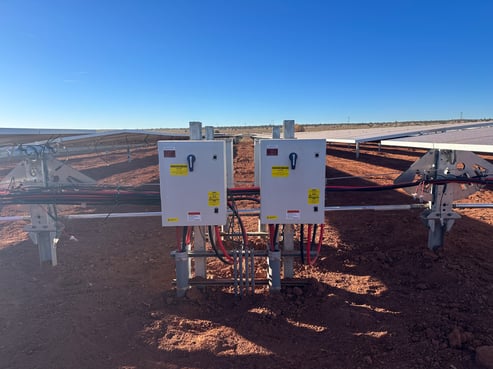

•    The messenger span and a combiner box

Transitions are often not given the necessary attention in the design phase and are left for the field team to figure out. As a consequence, installation tends to be messy and requires costly rework. Good system design means planning those transitions, with crisp construction details, clear mounting methods, and proper strain relief.

Clearance & Accessibility

Poor planning can also lead to inaccessible zones, shading losses, and frustrated maintenance teams. Installing a messenger wire isn’t just about getting cables off the ground; it’s also about keeping them at the right height.

Engineers must consider:

•    Clearance from the ground for mowers, weed whackers, or grazing animals (agrovoltaic sites)
•    Consistent sag across varying terrain, especially with heavier conductor bundles
•    Height under the array to avoid mechanical conflicts or shading
•    Maintaining accessible aisles for O&M crews

AHJ Headaches for Messenger Systems

While messenger systems are code-compliant, not every AHJ (Authority Having Jurisdiction) is familiar with them. That can trigger delays, especially if they expect conduit protection and don’t understand the code allowances for exposed, UV-rated, double-insulated PV wire.

With the right documentation and some proactive communication, most AHJ concerns can be addressed. This means:

•    Having datasheets and listings ready
•    Demonstrating environmental ratings
•    Highlighting that the messenger wire itself is often UL-listed for grounding

Retrofits Are Tricky Business

Developers seeking to revitalize aging PV assets, particularly those affected by rodent-damaged underground wires, view messenger wire systems as a viable retrofit option. But it's rarely plug-and-play. Key challenges:

•    Existing racking posts may not support the new tension loads
•    The original racking manufacturer must approve messenger wire attachment
•    If the posts don’t qualify, developers must install new standalone posts, often a surprise to budgets and timelines

Retrofits can be effective, but they require careful vetting upfront.

Unspoken Design Details That Make or Break Projects

Even when the design is solid, field success hinges on a thousand small details. Things like:

•    How to terminate wires cleanly at the last hanger
•    How to cross access roads without leaving wires vulnerable
•    What to do when a racking vendor won’t allow messenger wire loading on their posts
•    How to transition conductors into and out of the messenger system

These decisions can’t be left to chance. They require thought-out construction documentation and deep experience in system planning.

The Right Messenger Wire Playbook

Messenger wire systems have become the standard for utility and large-scale commercial solar installations. But they're not a shortcut. There's no way around crafting a complete design playbook, which includes electrical, structural, racking, and field installation, each with its own learning curve. At Pure Power, we’ve worked across hundreds of MWS-enabled projects. Our edge isn’t just knowing how to spec the system, it’s knowing how to make it work, without surprises.

So, before you string your first wire, ask yourself:

•    Who’s checking the transitions?
•    Who’s coordinating the posts?
•    Who’s educating the AHJ?

If the answer isn’t crystal clear, you might want a second set of eyes. For more information on our engineering services, please reach out to our team directly to review your messenger wire system plans. Because when it comes to wire management in utility-scale solar, the difference between smooth execution and costly redesigns often comes down to the details—and the right engineering partner.
